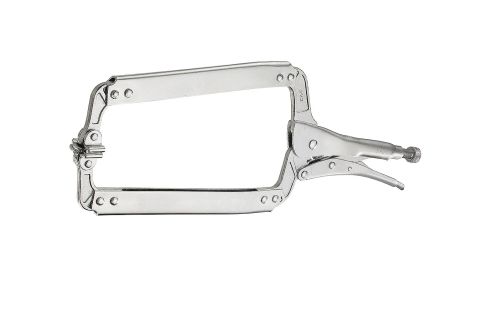

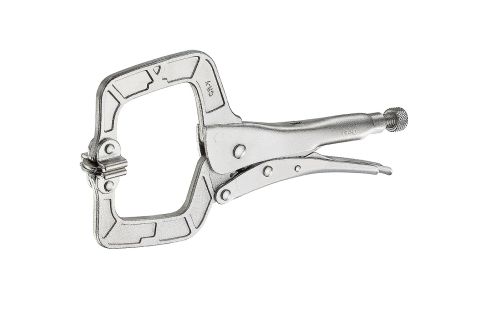

Locking C-Clamp with Swivel Pads (EU type)
Locking C-Clamp with Swivel Pads (EU type)
Model：CP406 /CP411 /CP418 /CP424
Pince-étaux col de cygne
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
Add to inquiry
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
PRODUCT DETAIL
- Wide-opening jaws provide greater versatility in clamping a variety of shapes.
- Suitable for clamping and securing components in inaccessible locations.
- Swivel pads hold tapered work, awkward fabricating jobs, and delicate projects without damaging the work surface.
- Constructed of high-grade heat-treated alloy steel for maximum toughness and durability.
- Micro-adjustment screw transfers proper pressure to change jaw opening, hold workpiece in proper alignment and stay adjusted for repetitive use.
- Nickel plated finish.
Specification
Item No.
Length
Jaw opening
Throat Depth
Weight
Type
CP406
6”(170mm)
0-40mm
35mm
250g
European
CP341
11”(285mm)
0-75mm
65mm
750g
European
CP418
18”(450mm)
0-120mm
225mm
1150g
European
CP424
24”(610mm)
0-140mm
390mm
1410g
European
