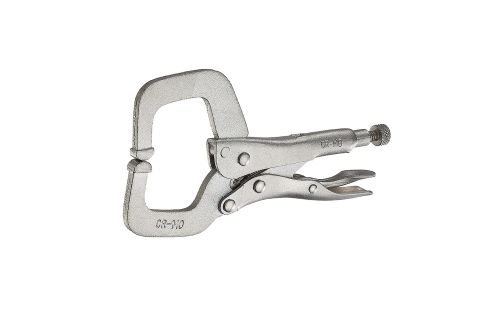

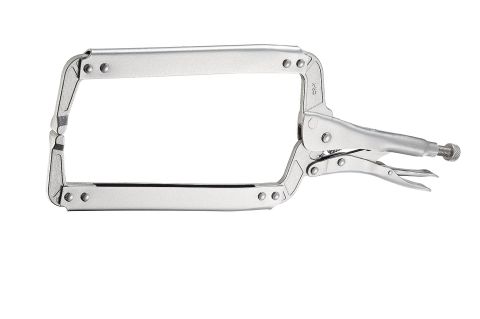

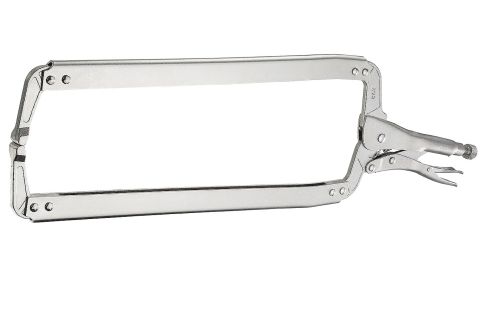

Locking C-Clamp with regular tip (US type)
Locking C-Clamp with regular tip (US type)
Model：CC306 /CC311 /CC318 /CC324
Pince-étaux col de cygne
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
Add to inquiry
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
PRODUCT DETAIL
- Wide-opening jaws provide greater versatility in clamping a variety of shapes.
- Suitable for clamping and securing components in inaccessible locations.
- Swivel pads hold tapered work, awkward fabricating jobs, and delicate projects without damaging the work surface.
- Constructed of high-grade heat-treated alloy steel for maximum toughness and durability.
- Micro-adjustment screw transfers proper pressure to change jaw opening, hold workpiece in proper alignment and stay adjusted for repetitive use.
- Nickel plated finish.
Specification
Item No.
Length
Jaw opening
Throat Depth
Weight
Type
CC306
6”(170mm)
0-40mm
35mm
240g
American
CC311
11”(280mm)
0-90mm
65mm
740g
American
CC318
18”(445mm)
0-160mm
225mm
1140g
American
CC324
24”(605mm)
0-230mm
390mm
1410g
American
