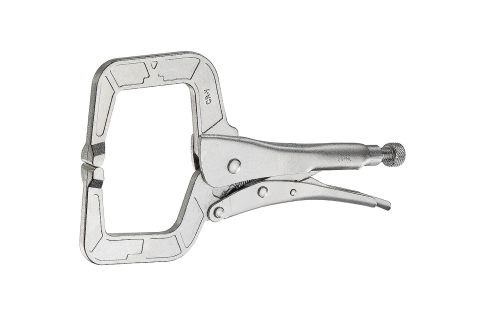

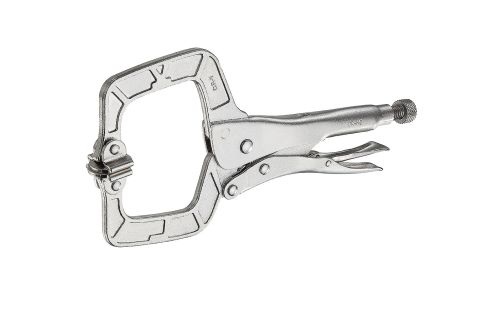

Locking C-Clamp with regular tip (EU type)
Locking C-Clamp with regular tip (EU type)
Model：CC406 /CC411 /CC418 /CC424
Pince-étaux col de cygne
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
Add to inquiry
Szczypce zaciskowe typu C
C-Typ Klemmzange
Mordazas de presión, soldadura por arco
C نوع قفل المشبك ذو طيات
คีมหนีบล็อคแบบ C
C型萬能夾鉗
(資料說明1/資料簡介)
PRODUCT DETAIL
- Wide-opening jaws provide greater versatility in clamping a variety of shapes.
- Suitable for clamping and securing components in inaccessible locations.
- The regular tips provide high surface pressure in tiny areas.
- Constructed of high-grade heat-treated alloy steel for maximum toughness and durability.
- Micro-adjustment screw transfers proper pressure to change jaw opening, hold workpiece in proper alignment and stay adjusted for repetitive use.
- Nickel plated finish.
Specification
Item No.
Length
Jaw opening
Throat Depth
Weight
Type
CC406
6”(170mm)
0-40mm
35mm
240g
European
CC411
11”(280mm)
0-70mm
65mm
740g
European
CC418
18”(445mm)
0-120mm
225mm
1140g
European
CC424
24”(605mm)
0-140mm
390mm
1410g
European
