Model：RM155 /RM107 /RM109
Straight Retaining Ring Pliers (Internal Ring) (Circlip Pliers)
Add to inquiry

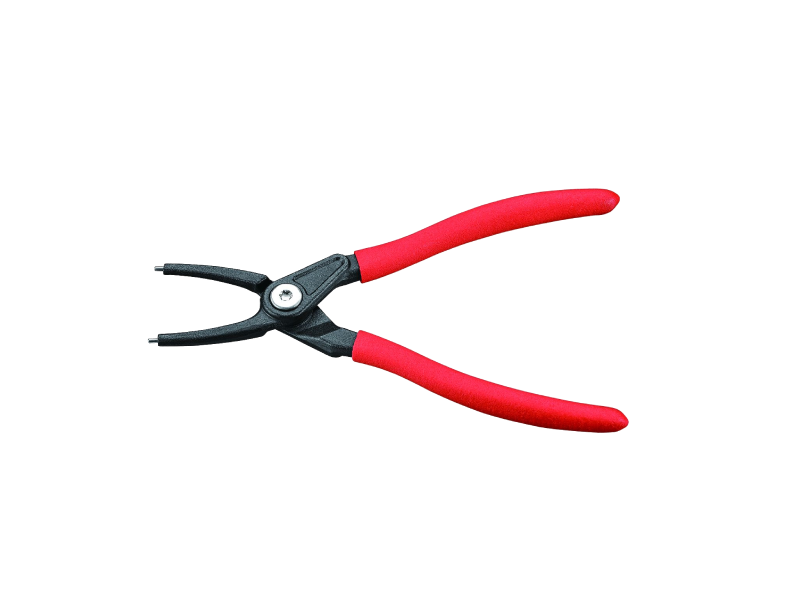

Straight Retaining Ring Pliers (Internal Ring) (Circlip Pliers)

TOP WELL is a professional internal straight snap ring pliers manufacturer focusing on design, development and production. Such as products.

  • For fitting retaining ring onto shaft or into bores.

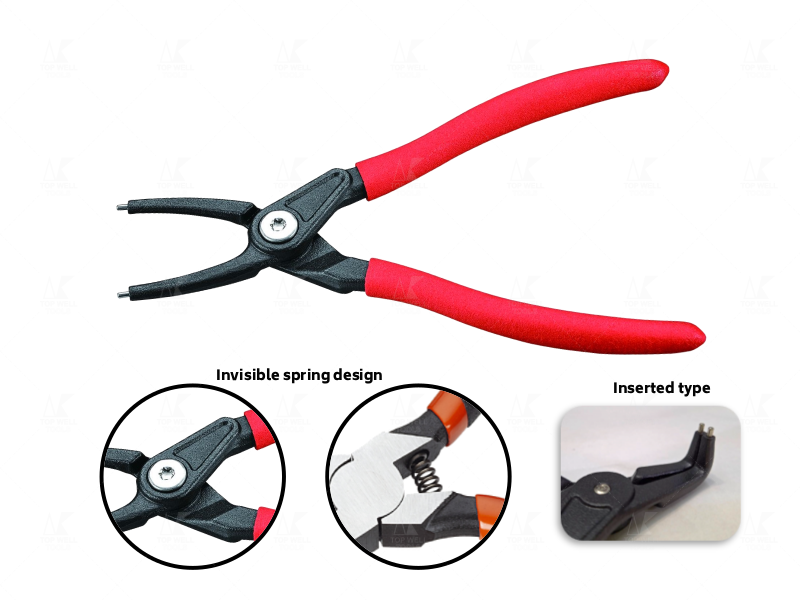

  • Concealed Spring for easy repetitive work.
  • Inserting bearing steel spikes for heavy duty applications.
  • Non-slip spike angle enables the ring to stick firmly to the spikes when compressing or expanding.
  • Wide handle for better handling.


    Specification

    Item No.

    Length

    Weight

    Capacity

    Tip dia.ψ

    Handle

    RM155

    5”(140mm)

    90g

    12-25mm

    1.3mm

    PVC Dip.

    RM107

    7”(180mm)

    175g

    19-60mm

    1.8mm

    PVC Dip.

    RM109

    9”(230mm)

    290g

    40-100mm

    2.3mm

    PVC Dip.
